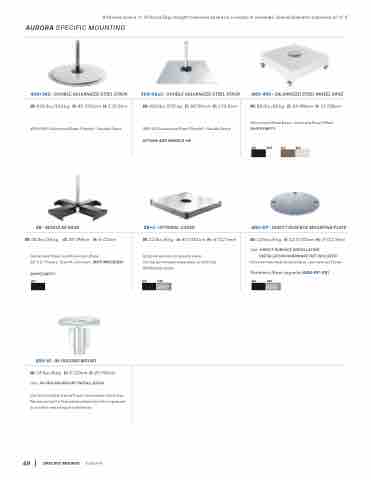

Page 60 - Frankford 2021-22 Catalog

AURORA SPECIFIC MOUNTING
40G+36G - DOUBLE GALVANIZED STEEL STACK W: 335 lbs./152 kg. D: 40”/101cm H: 1”/2.5cm
40G+36G Galvanized Steel Plate(s) - Double Stack
36G-SQx2 - DOUBLE GALVANIZED STEEL STACK W: 400 lbs./272 kg. D: 36”/91cm H: 1”/2.5cm
36G-SQ Galvanized Steel Plate(s) - Double Stack
OPTION: ADD WHEELS +W
XB+C- OPTIONAL COVER
W: 12 lbs./5 kg. D: 40”/101cm H: .5”/12.7mm
Optional aluminum beauty cover .
Can be purchased separately or with the XB Modular Base.
BK SM
ARU-480 - GALVANIZED STEEL WHEEL BASE W: 80 lbs./36 kg. D: 34”/86cm H: 11”/28cm
Galvanized Steel Base - Concrete Paver Filled
SHIPS EMPTY
BK WH BZ MS
ARU-DP - DIRECT SURFACE MOUNTING PLATE W: 12 lbs./5 kg. D: 12.5”/32cm H: .5”/12.7mm
Use: DIRECT SURFACE INSTALLATION INSTALLATION HARDWARE NOT INCLUDED
Directly mounted to decking or concrete surfaces.
Stainless Steel upgrade (ARU-DP-SS) BK SM
All bases have a +/- 10 lbs (4.5kg.) weight tolerance based on a variety of variables. Overall diameter tolerance of +/- 1”
XB - MODULAR BASE
W: 36 lbs./16 kg. D: 39”/99cm H: 5”/12cm
Galvanized Steel and Aluminum Base
16” x 2” Pavers, Total 8, minimum. (NOT INCLUDED)
SHIPS EMPTY
BK
ARU-IG - IN-GROUND MOUNT
W: 18 lbs./8 kg. D: 8”/20cm H: 20”/50cm
Use: IN-GROUND MOUNT INSTALLATION
Can be installed into soft soil, concrete or hard clay. Please consult a licensed professional for in-ground or surface mounting installations.
49
SPECIFIC MOUNTS - AURORA
