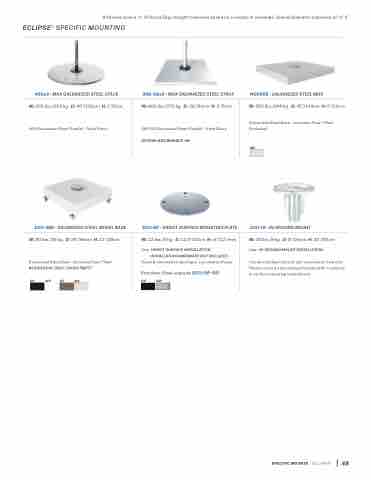

ECLIPSE® SPECIFIC MOUNTING
40Gx3 - MAX GALVANIZED STEEL STACK W: 555 lbs./252 kg. D: 40”/101cm H: 2”/5cm
40G Galvanized Steel Plate(s) - Triple Stack
36G-SQx3 - MAX GALVANIZED STEEL STACK W: 600 lbs./272 kg. D: 36”/91cm H: 2”/5cm
36G-SQ Galvanized Steel Plate(s) - Triple Stack
OPTION: ADD WHEELS +W
ECU-DP - DIRECT SURFACE MOUNTING PLATE W: 12 lbs./5 kg. D: 12.5”/32cm H: .5”/12.7mm
Use: DIRECT SURFACE INSTALLATION INSTALLATION HARDWARE NOT INCLUDED
Directly mounted to decking or concrete surfaces.
Stainless Steel upgrade (ECU-DP-SS) BK SM
NGU550 - GALVANIZED STEEL MAX
W: 550 lbs./249 kg. D: 45”/114cm H: 5”/13cm
Galvanized Steel Base - Concrete, Paver Filled (Included)
MS
ECU-IG - IN-GROUND MOUNT
W: 18 lbs./8 kg. D: 8”/20cm H: 20”/50cm
Use: IN-GROUND MOUNT INSTALLATION
Can be installed into soft soil, concrete or hard clay. Please consult a licensed professional for in-ground or surface mounting installations.
All bases have a +/- 10 lbs (4.5kg.) weight tolerance based on a variety of variables. Overall diameter tolerance of +/- 1”
ECU-480 - GALVANIZED STEEL WHEEL BASE W: 80 lbs./36 kg. D: 34”/86cm H: 11”/28cm
Galvanized Steel Base - Concrete Paver Filled
RESIDENTIAL ONLY / SHIPS EMPTY
BK WH BZ MS
SPECIFIC MOUNTS - ECLIPSE® 48
