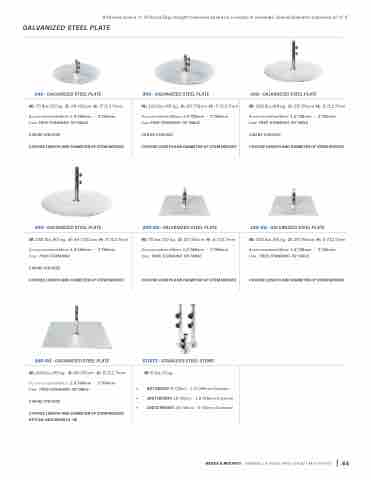

Page 55 - Frankford 2021-22 Catalog

GALVANIZED STEEL PLATE
24G - GALVANIZED STEEL PLATE
W: 70 lbs./32 kg. D: 24”/60cm H: .5”/12.7mm
30G - GALVANIZED STEEL PLATE
W: 100 lbs./45 kg. D: 30”/76cm H: .5”/12.7mm
36G - GALVANIZED STEEL PLATE
W: 150 lbs./68 kg. D: 36”/91cm H: .5”/12.7mm
Accommodated Mast: 1.5”/38mm - 2”/50mm Use: FREE-STANDING OR TABLE
CAN BE STACKED
CHOOSE LENGTH AND DIAMETER OF STEM NEEDED
24G-SQ - GALVANIZED STEEL PLATE
W: 100 lbs./45 kg. D: 24”/60cm H: .5”/12.7mm
Accommodated Mast: 1.5”/38mm - 2”/50mm Use: FREE-STANDING OR TABLE
CHOOSE LENGTH AND DIAMETER OF STEM NEEDED
All bases have a +/- 10 lbs (4.5kg.) weight tolerance based on a variety of variables. Overall diameter tolerance of +/- 1”
Accommodated Mast: 1.5”/38mm Use: FREE-STANDING OR TABLE
CAN BE STACKED
- 2”/50mm
Accommodated Mast: 1.5”/38mm Use: FREE-STANDING OR TABLE
CAN BE STACKED
- 2”/50mm
CHOOSE LENGTH AND DIAMETER OF STEM NEEDED
CHOOSE LENGTH AND DIAMETER OF STEM NEEDED
40G - GALVANIZED STEEL PLATE
W: 185 lbs./83 kg. D: 40”/101cm H: .5”/12.7mm
Accommodated Mast: 1.5”/38mm - 2”/50mm Use: FREE-STANDING
CAN BE STACKED
CHOOSE LENGTH AND DIAMETER OF STEM NEEDED
20G-SQ - GALVANIZED STEEL PLATE
W: 70 lbs./32 kg. D: 20”/50cm H: .5”/12.7mm
Accommodated Mast: 1.5”/38mm - 2”/50mm Use: FREE-STANDING OR TABLE
CHOOSE LENGTH AND DIAMETER OF STEM NEEDED
36G-SQ - GALVANIZED STEEL PLATE
ST/ST2 - STAINLESS STEEL STEMS W: 5 lbs./2 kg.
8ST HEIGHT: 8”/20cm - 1.5”/38mm Diameter 18ST HEIGHT: 18”/45cm - 1.5”/38mm Diameter 18ST2 HEIGHT: 18”/45cm - 2”/50mm Diameter
W: 200 lbs./90 kg. D: 36”/91cm Accommodated Mast: 1.5”/38mm -
Use: FREE-STANDING OR TABLE
CAN BE STACKED
H: .5”/12.7mm 2”/50mm
CHOOSE LENGTH AND DIAMETER OF STEM NEEDED OPTION: ADD WHEELS +W
• • •
BASES & MOUNTS - UMBRELLA BASE AND DIRECT MOUNTING 44
