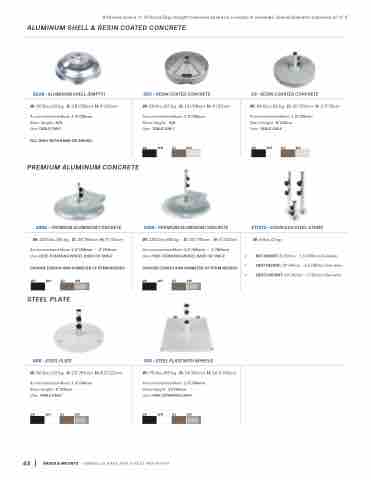

Page 54 - Frankford 2021-22 Catalog

All bases have a +/- 10 lbs (4.5kg.) weight tolerance based on a variety of variables. Overall diameter tolerance of +/- 1”
ALUMINUM SHELL & RESIN COATED CONCRETE
502A - ALUMINUM SHELL (EMPTY)
W: 50 lbs./22 kg. D: 18”/38cm H: 6”/15cm
Accommodated Mast: 1.5”/38mm Stem Height: N/A
Use: TABLE ONLY
FILL ONLY WITH SAND OR GRAVEL
PREMIUM ALUMINUM CONCRETE
100A - PREMIUM ALUMINUM CONCRETE W: 100 lbs./45 kg. D: 24”/60cm H: 4”/10cm
Accommodated Mast: 1.5”/38mm - 2”/50mm Use: FREE-STANDING WHEEL BASE OR TABLE
CHOOSE LENGTH AND DIAMETER OF STEM NEEDED
BK WH BZ SM
STEEL PLATE
50S - STEEL PLATE
W: 50 lbs./22 kg. D: 20”/50cm H: 8.5”/22cm
Accommodated Mast: 1.5”/38mm Stem Height: 8”/20cm
Use: TABLE ONLY
BK WH BZ SM
50C - RESIN COATED CONCRETE
W: 50 lbs./22 kg. D: 16”/38cm H: 6”/15cm
Accommodated Mast: 1.5”/38mm Stem Height:: N/A
Use: TABLE ONLY
BK WH BZ MS
23 - RESIN COASTED CONCRETE
W: 80 lbs./36 kg. D: 20”/50cm H: 3.5”/9cm
Accommodated Mast: 1.5”/38mm Stem Height: 8”/20cm
Use: TABLE ONLY
BK WH BZ MS
ST/ST2 - STAINLESS STEEL STEMS W: 5 lbs./2 kg.
• 8ST HEIGHT: 8”/20cm - 1.5”/38mm Diameter
• 18ST HEIGHT: 18”/45cm - 1.5”/38mm Diameter • 18ST2 HEIGHT: 18”/45cm - 2”/50mm Diameter
150A - PREMIUM ALUMINUM CONCRETE
W: 150 lbs./68 kg. D: 30”/76cm H: 4”/10cm
Accommodated Mast: 1.5”/38mm - 2”/50mm Use: FREE-STANDING WHEEL BASE OR TABLE
CHOOSE LENGTH AND DIAMETER OF STEM NEEDED BK WH BZ SM
75S - STEEL PLATE WITH WHEELS
W: 75 lbs./35 kg. D: 24”/61cm H: 16.5”/42cm
Accommodated Mast: 1.5”/38mm Stem Height: 16”/40cm
Use: FREE-STANDING ONLY
BK WH BZ SM
43
BASES & MOUNTS - UMBRELLA BASE AND DIRECT MOUNTING
