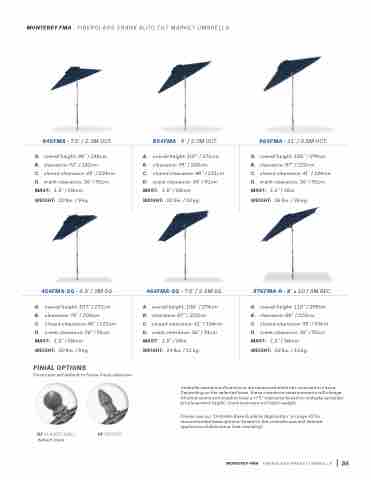

Page 47 - Frankford 2021-22 Catalog

MONTEREY FMA - FIBERGLASS CRANK AUTO TILT MARKET UMBRELLA
845FMA - 7.5’ / 2.3M OCT. overall height: 98” / 248cm
854FMA - 9’ / 2.7M OCT. A. overall height: 107” / 271cm
B. clearance: 79” / 200cm
C. closed clearance: 48” / 121cm D. crank clearance: 36” / 91cm MAST: 1.5” / 38mm
WEIGHT: 22 lbs. / 10 kg.
864FMA - 11’ / 3.5M OCT. overall height: 108” / 274cm
A.
B.
C.
D.
MAST: 1.5” / 38mm WEIGHT: 20 lbs. / 9 kg.
A.
B.
C.
D.
MAST: 1.5” / 38m WEIGHT: 26 lbs. / 26 kg.
clearance: 72” / 182cm
closed clearance: 49” / 124cm crank clearance: 36” / 91cm
clearance: 87” / 220cm closed clearance: 41” / 104cm crank clearance: 36” / 91cm
454FMA-SQ - 6.5’ / 2M SQ. overall height: 107” / 271cm
464FMA-SQ - 7.5’ / 2.3M SQ. A. overall height: 108” / 274cm
B. clearance: 87” / 220cm
C. closed clearance: 41” / 104cm D. crank clearance: 36” / 91cm MAST: 1.5” / 38m
876FMA-R - 8’ x 10’/ 3M REC. A. overall height: 118” / 299cm
B. clearance: 88” / 223cm
C. closed clearance: 39” / 99cm D. crank clearance: 36” / 91cm MAST: 1.5” / 38mm
WEIGHT: 28 lbs. / 13 kg.
A.
B.
C.
D.
MAST: 1.5” / 38mm WEIGHT: 20 lbs. / 9 kg.
clearance: 79” / 200cm closed clearance: 48” / 121cm crank clearance: 36” / 91cm
FINIAL OPTIONS
Finial color will default to frame finish selection
WEIGHT:
24 lbs. / 11 kg.
BF CLASSIC BALL default style
VF VERTEX
Umbrella clearance dimensions are measured while not mounted in a base. Depending on the selected base, these clearance measurements will change. All dimensions and weights have a +/-5” tolerance based on multiple variables; pin placement height, crank tautness and fabric weight.
Please see our "Umbrella Base Guide by Application” on page 42 for recommended base options, based on the umbrella size and desired application (table use or free-standing).
MONTEREY-FMA - FIBERGLASS MARKET UMBRELLA 36
