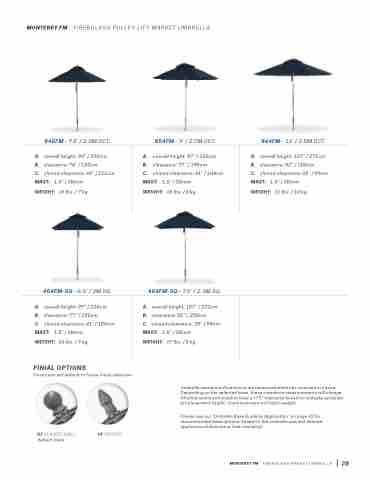

MONTEREY FM - FIBERGLASS PULLEY LIFT MARKET UMBRELLA
   845FM - 7.5’ / 2.3M OCT.
A. overall height: 94” / 238cm
B. clearance: 76” / 193cm
C. closed clearance: 44” / 111cm
MAST: 1.5” / 38mm WEIGHT: 16 lbs. / 7 kg.
454FM-SQ - 6.5’ / 2M SQ.
A. overall height: 97” / 236cm
B. clearance: 77” / 195cm
C. closed clearance: 41” / 104cm
MAST: 1.5” / 38mm WEIGHT: 16 lbs. / 7 kg.
FINIAL OPTIONS
Finial color will default to frame finish selection
854FM - 9’ / 2.7M OCT. A. overall height: 97” / 236cm
B. clearance: 77” / 195cm
C. closed clearance: 41” / 104cm MAST: 1.5” / 38mm
WEIGHT: 18 lbs. / 8 kg.
864FM - 11’ / 3.5M OCT. A. overall height: 107” / 271cm
B. clearance: 82” / 208cm
C. closed clearance: 39” / 99cm MAST: 1.5” / 38mm
    WEIGHT:
22 lbs. / 10 kg.
  464FM-SQ - 7.5’ / 2.3M SQ.
A. overall height: 107” / 271cm B. clearance: 82” / 208cm
C. closed clearance: 39” / 99cm MAST: 1.5” / 38mm
    WEIGHT:
17 lbs. / 8 kg.
  BF CLASSIC BALL default style
VF VERTEX
Umbrella clearance dimensions are measured while not mounted in a base. Depending on the selected base, these clearance measurements will change. All dimensions and weights have a +/-5” tolerance based on multiple variables; pin placement height, crank tautness and fabric weight.
Please see our "Umbrella Base Guide by Application” on page 42 for recommended base options, based on the umbrella size and desired application (table use or free-standing).
MONTEREY FM - FIBERGLASS MARKET UMBRELLA 28
