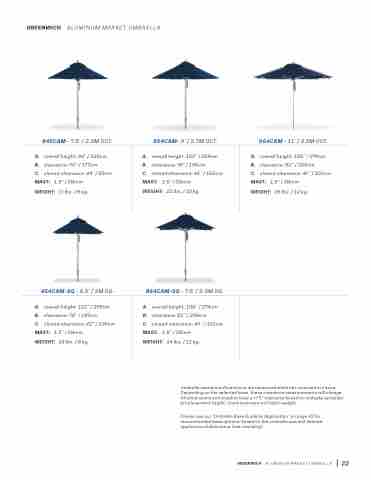

Page 33 - Frankford 2021-22 Catalog
P. 33

GREENWICH - ALUMINUM MARKET UMBRELLA
   845CAM - 7.5’ / 2.3M OCT.
A. overall height: 94” / 238cm
B. clearance: 70” / 177cm
C. closed clearance: 44” / 85cm
MAST: 1.5” / 38mm WEIGHT: 20 lbs. / 9 kg.
854CAM- 9’ / 2.7M OCT.
A. overall height: 102” / 259cm B. clearance: 76” / 193cm
C. closed clearance: 42” / 106cm MAST: 1.5” / 38mm
WEIGHT: 22 lbs. / 10 kg.
864CAM - 11’ / 3.5M OCT. A. overall height: 108” / 274cm
B. clearance: 82” / 208cm
C. closed clearance: 40” / 101cm MAST: 1.5” / 38mm
    WEIGHT:
26 lbs. / 12 kg.
  454CAM-SQ - 6.5’ / 2M SQ.
A. overall height: 102” / 259cm
B. clearance: 76” / 193cm
C. closed clearance: 42” / 106cm
MAST: 1.5” / 38mm
864CAM-SQ - 7.5’ / 2.3M SQ.
A. overall height: 108” / 274cm B. clearance: 82” / 208cm
C. closed clearance: 40” / 101cm MAST: 1.5” / 38mm
    WEIGHT:
18 lbs. / 8 kg.
WEIGHT:
24 lbs. / 11 kg.
Umbrella clearance dimensions are measured while not mounted in a base. Depending on the selected base, these clearance measurements will change. All dimensions and weights have a +/-5” tolerance based on multiple variables; pin placement height, crank tautness and fabric weight.
Please see our "Umbrella Base Guide by Application” on page 42 for recommended base options, based on the umbrella size and desired application (table use or free-standing).
GREENWICH - ALUMINUM MARKET UMBRELLA 22
