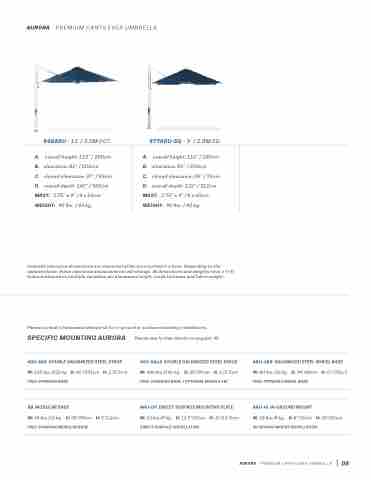

AURORA - PREMIUM CANTILEVER UMBRELLA
868ARU - 11’ / 3.5M OCT.
A. overall height: 110” / 280cm
B. clearance: 82” / 203cm
C. closed clearance: 37” / 93cm
D. overall depth: 142” / 363cm
MAST: 2.75” x 4” / 8 x 10cm WEIGHT: 95 lbs. / 43 kg.
877ARU-SQ - 9’ / 2.8M SQ.
A. overall height: 110” / 280cm B. clearance: 82” / 203cm
C. closed clearance: 29” / 73cm D. overall depth: 122” / 312cm MAST: 2.75” x 4” / 8 x 10cm WEIGHT: 90 lbs. / 40 kg.
Umbrella clearance dimensions are measured while not mounted in a base. Depending on the selected base, these clearance measurements will change. All dimensions and weights have a +/-5” tolerance based on multiple variables; pin placement height, crank tautness and fabric weight.
Please consult a licensed professional for in-ground or surface mounting installations.
SPECIFIC MOUNTING AURORA
40G-36G DOUBLE GALVANIZED STEEL STACK
Please see further details on page(s) 49
36G-SQx2 DOUBLE GALVANIZED STEEL STACK W: 400 lbs./181 kg. D: 36”/91cm H: 1”/2.5cm FREE-STANDING BASE / OPTIONAL WHEELS +W
ARU-DP DIRECT SURFACE MOUNTING PLATE
W: 12 lbs./5 kg. D: 12.5”/32cm H: .5”/12.7mm DIRECT SURFACE INSTALLATION
ARU-480 GALVANIZED STEEL WHEEL BASE W: 80 lbs./36 kg. D: 34”/86cm H: 11”/28cm FREE-STANDING WHEEL BASE
ARU-IG IN-GROUND MOUNT
W: 18 lbs./8 kg. D: 8”/20cm H: 20”/50cm IN-GROUND MOUNT INSTALLATION
W: 335 lbs./152 kg. FREE-STANDING BASE
D: 40”/101cm
H: 1”/2.5cm
XB MODULAR BASE
W: 36 lbs./16 kg. D: 39”/99cm FREE-STANDING MODULAR BASE
H: 5”/12cm
AURORA - PREMIUM CANTILEVER UMBRELLA 08
