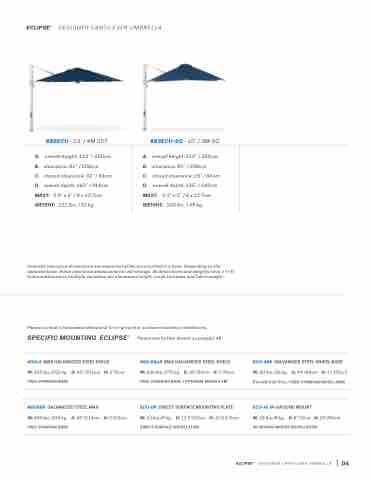

ECLIPSE® - DESIGNER CANTILEVER UMBRELLA
880ECU - 13’ / 4M OCT.
A. overall height: 110” / 280cm
B. clearance: 82” / 208cm
C. closed clearance: 32” / 81cm
D. overall depth: 163” / 414cm
MAST: 3.3” x 5” / 8 x 12.7cm WEIGHT: 112 lbs. / 51 kg.
883ECU-SQ - 10’ / 3M SQ.
A. overall height: 110” / 280cm B. clearance: 82” / 208cm
C. closed clearance: 26” / 66cm D. overall depth: 135” / 342cm MAST: 3.3” x 5” / 8 x 12.7cm WEIGHT: 108 lbs. / 49 kg.
Umbrella clearance dimensions are measured while not mounted in a base. Depending on the selected base, these clearance measurements will change. All dimensions and weights have a +/-5” tolerance based on multiple variables; pin placement height, crank tautness and fabric weight.
Please consult a licensed professional for in-ground or surface mounting installations.
SPECIFIC MOUNTING ECLIPSE® 40Gx3 MAX GALVANIZED STEEL STACK
Please see further details on page(s) 48
36G-SQx3 MAX GALVANIZED STEEL STACK W: 600 lbs./272 kg. D: 36”/91cm H: 2”/5cm FREE-STANDING BASE / OPTIONAL WHEELS +W
ECU-DP DIRECT SURFACE MOUNTING PLATE
W: 12 lbs./5 kg. D: 12.5”/32cm H: .5”/12.7mm DIRECT SURFACE INSTALLATION
ECU-480 GALVANIZED STEEL WHEEL BASE W: 80 lbs./36 kg. D: 34”/86cm H: 11”/28cm Residential Only / FREE-STANDING WHEEL BASE
ECU-IG IN-GROUND MOUNT
W: 18 lbs./8 kg. D: 8”/20cm H: 20”/50cm IN-GROUND MOUNT INSTALLATION
W: 555 lbs./252 kg. D: 40”/101cm FREE-STANDING BASE
NGU550 GALVANIZED STEEL MAX W: 550 lbs./249 kg. D: 45”/114cm FREE-STANDING BASE
H: 2”/5cm
H: 5”/13cm
ECLIPSE® - DESIGNER CANTILEVER UMBRELLA 04
